wire mesh factory
8 Years
| Ask Lasest Price | |
| Brand Name : | SS |
| Price : | US $6-10 / Pieces |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1000 pcs/week |
| Delivery Time : | 10-15days after confirming the order |

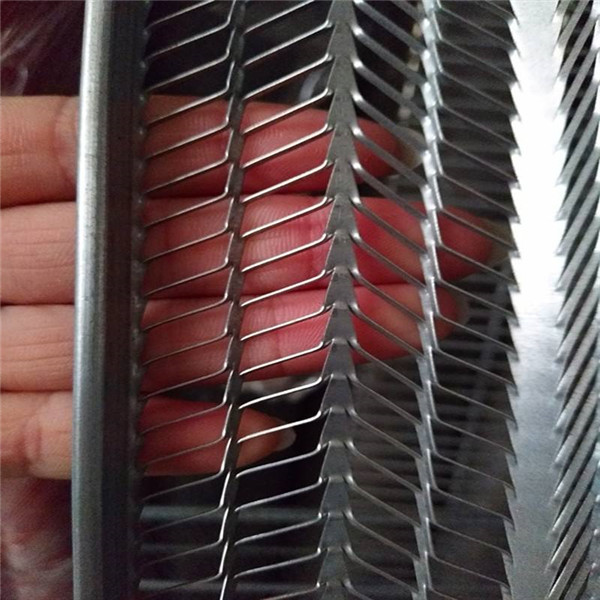

high rib mesh/diamond mesh metal lath/stainles steel lath price/rib lath suppliers/galvanised rib lath

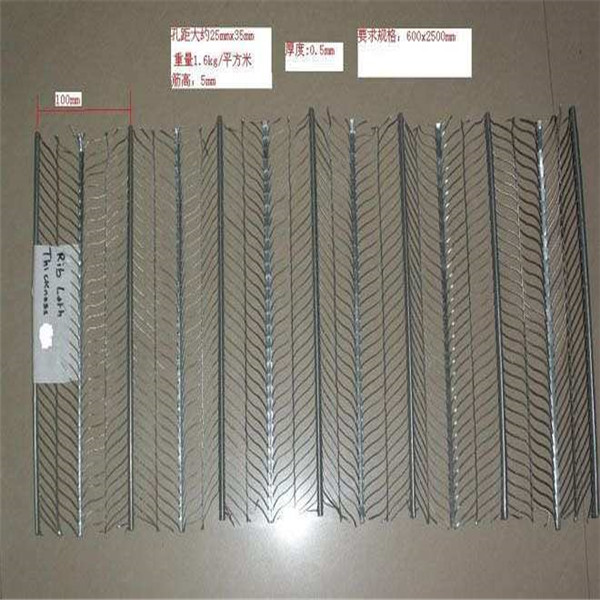

Rib Lath Specifications:
thickness: 0.2-0.5mm
Rib height: 1/8",3/8",4mm,10mm
Rib Distance: 100mm, 150mm
Width: 610mm
Length: 2200mm
3/8’’ Middle rib lath:
| Code | Rib depth | Rib distance | Sheet size | Thickness |
| JQ5 | 10mm | 150mm | 600mm x 2200~2500mm | 0.25mm~0.5mm |
| JQ7 | 10mm | 100mm | 600mm x 2200~2500mm | 0.25mm~0.5mm |
| JQ9 | 10mm | 75mm | 600mm x 2200~2500mm | 0.25mm~0.5mm |
3/4’’ High rib lath:(Metal Rib/Stay form)
| Code | Rib depth | Rib distance | weight | Sheet size | Packing |
| JQ8 | 19~20mm | 98mm | 11.9bls | 27’’ x97’’ | 250pcs/Plt |
| JQ2 | 19~20mm | 98mm | 200mmx97’’ | ||
| JQ3 | 19~20mm | 98mm | 300mmx97’’ | ||
| MG-HRB4 | 19~20mm | 98mm | 400mmx97’’ | ||
| MG-HRB5 | 19~20mm | 98mm | 500mmx97’’ | ||
| MG-HRB6 | 19~20mm | 98mm | 600mmx97’ |
| Code | Rib depth | Rib distance | Sheet size | Thickness |
| JQ5 | 4~6mm | 150mm | 600mm x 2200~2500mm | 0.25mm~0.5mm |
| JQ7 | 4~6mm | 100mm | 600mm x 2200~2500mm | 0.25mm~0.5mm |
| JQ9 | 4~6mm | 75mm | 600mm x 2200~2500mm | 0.25mm~0.5mm |
feature of the rib lath .
1.mechanical performance is good, the lateral pressure is small
2.pouring process is easy seen .
3.light weight, easy to transport and install
4.optimization of process, increase the shear interface
5.easy to wear and continuous banding steel
6.to adapt to the segmented pouring concrete, the construction of
civilization
7.the socket and cutting easy operation
The application of the rib lath .
Applicable to industrial and civil construction, water conservancy,
municipal,
transportation, highways, infrastructure and other projects, mainly
for the housing
wall plaster, decorative construction, warehouse applies to repair
reinforcement,etc
1.Construction formwork mesh has very good engineering quality and
construction security;
2.Construction formwork mesh as the concrete permanent
assembly,free sheet is much convenient for engineering design and
processing;
3.Construction formwork mesh is widely used in tunnels,bridgesand
so on to make the process of construction much more fast and
stable.
4. Because it's the U patterns, the formwork has more capability
form stress.

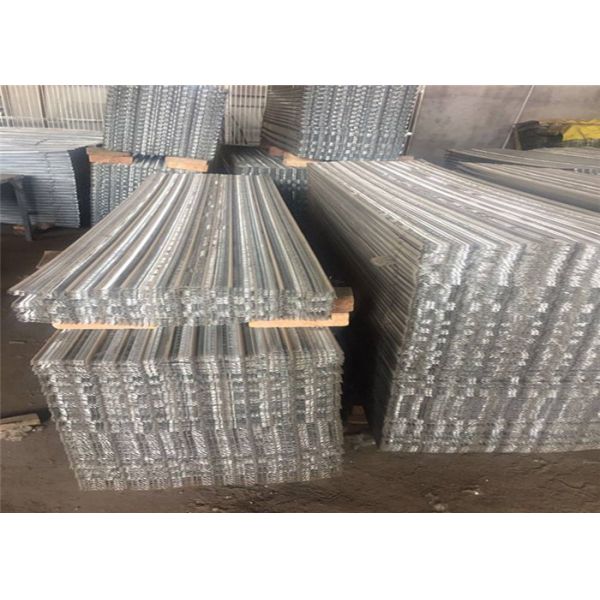

Packing & Shipping
10PC/bundle, 50bundle/ pallet. or as customer request!
Q1: Are you manufacturer?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How to proceed an order ?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly Customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
|
|
